Elna eXcellence 782 Sewing and Quilting Machine
Select an icon to view image gallery.
Elna eXcellence 782 Sewing and Quilting Machine
Specifications
Accessories Included
Pair it With
- Advanced computerized sewing and quilting machine built with a professional-grade design for durability, precision, and high-definition performance.
- Essentially the same machine as the Janome Horizon Memory Craft 9480QC — built in the same factory with the same proven engineering.
- THROAT SPACE: 11” to the right of the needle — generous workspace for quilts, large projects, and layered materials, with a long-arm design and extra-wide extension table.
- SPEED: Up to 1,060 stitches per minute with precise stitch control across all fabric types.
- KEY FEATURES: Dual Feed Plus fabric feeding system, standard Accurate Stitch Regulator with 4 feet, one-step needle plate conversion, and adjustable knee lifter.
- ADVANCED CONTROL: 5” HD Color Touchscreen, jog dials for precise stitch adjustment, and up to 100 stitch combinations.
- Scroll down for the complete list of features, specifications, and included accessories.
KEY FEATURES
- Automatic and Programmable Thread Cutter: Trims both top and bobbin threads at the push of a button, giving you a clean start and finish on every seam.
- Built-In Smart System Needle Threader: Feeds thread through the eye of the needle quickly and accurately so you can get back to sewing faster.
- Speed Control up to 1,060 Stitches Per Minute: A sliding speed control lets you dial in exactly the pace you need, from slow and deliberate to high-speed production sewing.
- Removable Dual Feed Plus System: Moves fabric from both the top and bottom simultaneously using wide and narrow feet, for precise, even feeding through quilts, plaids, and multiple layers.
- One-Step Needle Plate Conversion: Switch between the three included needle plates in seconds — standard, straight stitch, and professional grade HP.
- Professional HP Foot and Needle Plate: Narrow-gauge industrial-type foot designed for curves, precise topstitching, and accurate quarter-inch seams with superior visibility around the needle.
- 400 Built-In Stitches Plus 3 Alphabets: A wide range of utility and decorative stitches with 3 fonts (Block, Script, Broadway) for monogramming, labels, and personalization — all up to 9mm wide.
- 11 One-Step Buttonholes: Ten automatic and one sensor buttonhole style, sewn automatically in one step with the included buttonhole foot and stabilizer plate.
- Floating Mode: Adjusts presser foot pressure and height independently without affecting tension — essential for delicate and easily damaged fabrics that tend to shift during sewing.
- Accurate Stitch Regulator (A.S.R.) Included: The A.S.R. device and 4 dedicated presser feet come standard for regular, precise stitching during free-motion sewing and ruler work — with adjustable sensor sensitivity as your skills develop.
- Full Intensity Lighting System: Nine white LED lamps in four locations plus a retractable sewing light that pulls out to deliver direct illumination at the needle for a completely shadow-free workspace.
- Sewing Application: Step-by-step guidance built into the machine walks you through countless sewing and quilting functions.
- Memorized Needle Up/Down: Stops the needle in your chosen position every time, making it easier to pivot at corners and maintain control during free-motion work.
- Extra High Presser Foot Lift: Accommodates thick layers and bulky materials so you can position even the most substantial projects under the needle without a struggle.
- Adjustable Knee Lift: Raise the presser foot hands-free while keeping both hands on your fabric. The knee lifter adjusts to fit your body position for all-day comfort.
- Jog Dials for Precise Stitch Adjustment: Fine-tune stitch width and length using dedicated encoder dials for exact, repeatable control.
- Foot Pressure Adjustment: Automatic presser foot pressure adjustment with fabric sensor fine-tunes performance across any fabric weight, from delicate quilting cotton to heavy layered materials.
- 5" HD Color Touchscreen: Displays stitch selection, recommended presser foot, tension settings, and customization options at a glance — save your favorite stitches for quick access during any project.
- Easy Access Buttons to 5 Key Functions: Dedicated buttons put your most-used functions within immediate reach, without navigating through menus.
- Automatic Thread Tension Control: Tension adjusts automatically to your thread and fabric combination for consistent stitch quality.
- Start/Stop Button + Easy Reverse + Locking Stitch: Sew without the foot controller, backstitch instantly, and lock thread ends cleanly — all at the push of a button.
- 91 Needle Positions + 9mm Maximum Stitch Width: Precise needle placement across 91 positions with a wide 9mm stitch width for appliqué, decorative work, and detailed stitching.
The Elna eXcellence 782 is an advanced computerized sewing and quilting machine built for makers who demand high-definition precision, intelligent fabric control, and a feature set that meets the needs of serious quilters and sewists. With the addition of the all-new Accurate Stitch Regulator, the 782 is the dream machine for patchwork and quilting enthusiasts.
What makes the 782 stand out is the combination of workspace and intelligent design. Its long-arm design, extra-large 280 x 120 mm sewing space, and extra-long 150 mm free arm give you room to maneuver large quilts and fabric panels, while the removable Dual Feed Plus system keeps stitching smooth, precise, and accessible for any project. Floating Mode takes fabric handling further by adjusting presser foot pressure and height independently, protecting delicate and easily damaged fabrics that tend to shift under standard feeding.
Stitch control is where the 782 truly sets itself apart. 400 built-in stitches up to 9mm wide — including 3 alphabets in 3 fonts and 11 one-step buttonholes — give you precise creative control across every project. 91 needle positions, jog dials for fine stitch adjustment, and the 5" HD color touchscreen keep every setting visible and adjustable at a glance. The included Stitch Composer software lets you design your own stitches on a PC and transfer them directly to the machine via USB.
The Accurate Stitch Regulator is included as a standard accessory on the 782, with 4 dedicated presser feet for regular, precise stitching during free-motion sewing and ruler work, plus adjustable sensor sensitivity as your skills develop. A built-in Sewing Application walks you through countless functions with step-by-step guidance, right on the touchscreen.
Everyday workflow is just as well considered. The automatic and programmable thread cutter trims threads at the push of a button, while the built-in Smart System needle threader, memorized needle up/down, adjustable knee lifter, and extra-high presser foot lift all keep you moving efficiently through long sewing and quilting sessions. Nine white LED lamps in four locations plus a retractable front light ensure a completely shadow-free workspace at the needle.
We recommend the Elna eXcellence 782 for serious quilters, garment sewists, and makers who want advanced stitch variety, intelligent fabric control, and free-motion quilting precision in one machine.Elna machines are manufactured by Janome in the same factory and share the same proven quality and engineering. Many Elna models are essentially equivalent to Janome models while offering additional online-exclusive options and competitive pricing, making them an excellent value.
400
Stitches3
Alphabets11
Buttonholes5” HD Touchscreen
Screen9mm
Max Stitch Width5mm
Max Stitch LengthYes
Thread CutterYes
Needle Threader11” W x 4.7” H
Throat SpaceUp to 1,060 SPM
Sewing SpeedDual Feed Plus
Feed SystemYes
Knee LiftClass 15 (Style A)
Bobbin TypeHAx1 (130/705H)
Needle System29.8 lbs
Machine Weight21.1” x 12.8” x 9.6”
Machine Dimensions
Zig-Zag Foot
Learn More
Zig-Zag Foot
- The Zig-Zag Foot A comes standard on all Elna Sewing machines and is used for most utility sewing, from straight stitch to zig-zag.
- The unique Black Leveling Button on the side will help you over the hump when sewing over thick seams.
- The Zig-Zag Foot A is also called the All-Purpose Foot or General Sewing Foot.

Rolled Hem Foot
Learn More
Rolled Hem Foot
- The Rolled Hem Foot is used to stitch the narrow rolled hems usually found on shirt tails, table linens and along the edge of frills.
- This foot is designed with a scroll-shaped feeder on top and a straight groove on the underside which determines the width of the finished hem.

Zipper Foot
Learn More
Zipper Foot
- This foot can be set to sew on each side of the zipper by adjusting the position of the foot and tightening the thumb screw.
- Also great for sewing close to piping.

Satin Stitch Foot
Learn More
Satin Stitch Foot
- For sewing dense zig-zag stitching.
- The bottom of the foot is beveled for smooth delivery of thread when sewing decorative or satin stitches.
- Foot is made of clear plastic making it easier to view stitching.

Open-Toe Satin Stitch Foot
Learn More
Open-Toe Satin Stitch Foot
- The open-toe on this foot allows a better view of the sewing in progress.
- This foot can be used for quilting, monogramming, applique and cutwork.
- This foot can also be referred to as a open toe satin stitch foot.

Blind Hem Foot
Learn More
Blind Hem Foot
- Blind hemming can sometimes be a little bit tricky so the blind hem foot goes some way to helping improve this technique.
- The foot has a metal guide in the center and three grooves on the underside. During blind hemming, the fold of the fabric fits snugly against the guide in the foot for accuracy while the groove underneath help to prevent unnecessary slipping.
- The needle swings over the metal guide creating slack in the upper tension so that the pick of the stitch is almost invisible.

Professional Grade Foot (HP)
Learn More
Professional Grade Foot (HP)
- Inspired by the narrow gauge of industrial accessory feet and the ideal conditions of straight stitching from the left needle position, the HP Foot offers superior visibility and control.

Quilting Guide Bar
Learn More
Quilting Guide Bar
- The quilting guide bar attaches to the walking foot for equal placement of rows of stitches or use to follow a seam.

Overcast Foot
Learn More
Overcast Foot
- Use with the Overlock stitch to give a professional finish to the edges of your seams.
- Particularly good for finishing off medium to heavyweight, easily frayed woven fabrics such as tweed, gabardine, and linen.
- It has a guide to help you line up your seam.

¼″ Seam Foot
Learn More
¼″ Seam Foot
- A popular foot for quilters for that essential ¼″ seam.
- The guide on the foot enables you to sew a perfect ¼″ seam every time.
- The guide can also be used wherever a ¼″ seam is called for but the markings on the needle plate cannot be used, such as when completing a flat seam.

¼″ Seam Foot Without Guide
Learn More
¼″ Seam Foot Without Guide
- The ¼″ seam foot without the guide is an incredibly versatile tool for various piecing projects.
- Similar to the standard ¼″ seam foot, it allows you to achieve precise ¼″ seams by aligning your fabric with the edge of the presser foot.
- The wider surface of the foot ensures stable fabric feeding. Constructed from durable metal, this foot offers strength and reliability.

Darning Foot Set
Learn More
Darning Foot Set
- Sometimes referred to as the embroidery foot, the darning foot is used for “free hand” embroidery and darning to ensure proper stitch formation, minimize skipped stitches and puckering and also protect your fingers while you move your fabric freely under the needle.
- Especially beneficial to those just learning how to do free hand embroidery.
- The open-toe version greatly improves visibility of stitches and is especially popular with quilters.
- Includes both open-toe and closed-toe versions.

Free Motion Quilting Foot Set
Learn More
Free Motion Quilting Foot Set
- The Free Motion Quilting Foot Set includes three styles:
- Closed-Toe Foot (QC) — For general use with lace and catchable fabrics, where the enclosed design helps avoid snagging.
- Open-Toe Foot (QO) — For general use and extra visibility of stitches while quilting.
- Zig-Zag Foot (QV) — Used for free motion embroidery, quilting, and stippling; its bullseye shape and clear grid pattern help keep zig-zag stitching lines exactly where you want them.
- Feet are available for both high shank and low shank machines, and snap on to Elna machines with automatic foot lift.

Variable Zig-Zag Open-Toe Foot
Learn More
Variable Zig-Zag Open-Toe Foot
- An open type variable zig-zag foot which makes it easy to see how your stitches look as they form.
- Especially useful for detailed areas, layered stitch finishing or thread painting.

Ruler Work Foot
Learn More
Ruler Work Foot
- This foot was developed for doing ruler work.
- Installs easily into the machine and is operated by your knee while positioned under the table.
- Guide quilting templates along the edge of the foot to create straight, curved, or repetitious patterns depending on your ruler or quilting template.
- The V-shaped gap in the front enhances visibility.

Automatic Buttonhole Foot
Learn More
Automatic Buttonhole Foot
- For sewing buttonholes on tight areas such as cuffs and other areas where more freedom of movement is required than available with a sliding-type buttonhole foot.

Buttonhole Stabilizer Plate
Learn More
Buttonhole Stabilizer Plate
- With Buttonhole Foot R attached to the Buttonhole Stabilizer Plate, the machine feeds various kinds of fabric and uneven layers more smoothly instead of pulling fabric in or causing the needle to stick in position.

Button Sewing Foot
Learn More
Button Sewing Foot
- Quick and easy button sewing with the special button sewing foot.
- The collapsible legs make it easy to fold and take with you on the go — perfect for traveling sewists.
- This foot has two bars that attach to the foot shank to provide extra stability and also has a textured, rubber sleeve to hold the button securely in place while sewing.

Dual Feed Foot AD and Holder (Wide)
Learn More
Dual Feed Foot AD and Holder (Wide)
- Also referred to as the walking foot.
- The Dual Feed foot and holder comes standard with all models with the Dual Feed System.
- The foot is specially designed to engage the Dual Feed system, and move the top layer of fabric in sync with the bottom layer.

Dual Feed Plus Professional Grade Foot HP2 and Holder (Narrow)
Learn More
Dual Feed Plus Professional Grade Foot HP2 and Holder (Narrow)
- For use in combination with Professional Grade Needle Plate (HP)
- This foot provides superior visibility with the shape of the slit at the front of the foot.
- Holds fabrics firmly in sync with the feed dogs to achieve professional results.
- Great for curves and precise topstitching due to the narrow foot width.
- Provides smooth feeding of top layer of fabric in sync with bottom layer for quilting and sewing leather or vinyl.
- Matching the edge of the fabric against the edge of the foot will give you a perfect 1/4″ seam allowance.

Zig-Zag Needle Plate
Learn More
Zig-Zag Needle Plate
- Large zig-zag stitch needle plate assembly for the Elna Sewing & Quilting Machines.
- Comes set on machine.

Straight Stitch Needle Plate
Learn More
Straight Stitch Needle Plate
- Used for straight stitching in the center position.
- The straight stitch plate helps provide a more stable base.
- The smaller opening is great for working on fine fabrics that are prone to getting pulled into the feed dogs.

Professional Grade Needle Plate (HP)
Learn More
Professional Grade Needle Plate (HP)
- Accurate stitches and perfect starts on any type of fabric has gotten easier.
- This straight stitch plate works great in conjunction with the HP foot for curves and precise topstitching.

Hook Cover Plate
Learn More
Hook Cover Plate
- Covers the bobbin on Elna machines. Its markings are designed for use with the zig-zag or straight stitch plate, though it will also fit onto the HP plate.
- Please check the shape of your cover — this version features 1 rounded corner and 3 pointed corners.
- Included with new machines. If purchasing the needle plate alone, this cover is NOT included.

Hook Cover Plate (HP)
Learn More
Hook Cover Plate (HP)
- Clear plastic bobbin cover designed for the Professional Grade Needle Plate (HP)
- Clear plastic for clear visibility to the bobbin so you can see how much thread you have left before it runs out.
- It clips or slides into place and covers the bobbin to stop it jumping out, without this bobbin cover plate the machine will not stitch correctly.

Bobbin Set
Learn More
Bobbin Set
- Set of five standard Elna bobbins
- There are several types of bobbins on the market. Using the incorrect size and type of bobbin can affect stitch quality and could possibly damage the machine.
- These clear plastic bobbins are compatible with all Elna and Janome Sewing and embroidery machines except the 1600P, HD9, MB4, and MB7.

Assorted Needle Set
Learn More
Assorted Needle Set
- This set contains: two blue tip needles, one purple tip needle, one red tip needle, and one twin needle.

Additional Spool Pin
Learn More
Additional Spool Pin
- This spool pin fits on the top of the machine to allow the use of two threads at the same time while sewing.

Circular Pivot Pin
Learn More
Circular Pivot Pin
- The Elna exclusive pivot pin is ideal for producing perfect curves or circles.
- Simply attach the elna pivot pin to your sewing machine for stitching circular patterns.
- Fantastic with either utility or decorative stitches.

Large Screwdriver
Learn More
Large Screwdriver
- Screwdriver to help remove needles and other accessories from your machine.
- Screwdrivers should be used to tighten or loosen screws when needed gently.
- Never over-tighten, and never use power tools on Elna machines.

Lint Brush
Learn More
Lint Brush
- Perfect for cleaning around the bobbin, the feed dogs and any other accessible areas.

Seam Ripper
Learn More
Seam Ripper
- The standard seam ripper included with most machines.
- Also known as a buttonhole opener.

A.S.R. (Accurate Stitch Regulator) Kit
Learn More
A.S.R. (Accurate Stitch Regulator) Kit
- The exclusive Elna stitch regulation system kit comes standard with the eXcellence 782 and includes four feet:
- Closed-Toe Foot — Use for free motion quilting.
- Open-Toe Foot – Use for free motion quilting. The front of the foot is open for better visibility of stitches.
- Clear-View — Use for zig-zag free motion quilting. Use for the bumpy quilt of the echo quilting.
- Ruler Work — Elna Exclusive. Use with quilting rulers to create professional-looking shapes.
- With the added benefit of setting the sensor’s sensitivity, you can adjust the regulation as your skills build.

Large Spool Cap Set
Learn More
Large Spool Cap Set
- This set contains two large spool caps.
- Spool caps prevent the leading thread from catching the head of the spool while the machine is running. In general it helps the thread properly unwind.

Small Spool Cap Set
Learn More
Small Spool Cap Set
- This set contains two small spool caps.
- Spool caps prevent the leading thread from catching the head of the spool while the machine is running. In general it helps the thread properly unwind.

Special Spool Cap Set
Learn More
Special Spool Cap Set
- This set contains two special spool caps.
- Sometimes, a large spool will not fit on your horizontal spool pin with enough room for the spool cap to attach properly.
- This special spool cap allows the spool to be held tight to your spool pin without falling off or creating a gap.

Button Shank Plate
Learn More
Button Shank Plate
- This button shank plate is used when attaching buttons to thicker fabrics.
- When sewing on the button, this plate is placed between the button and the fabric to prevent the button from pulling on the fabric.

Touch Panel Stylus
Learn More
Touch Panel Stylus
- This stylus is designed to help you navigate the touch screen with ease, providing precision and accuracy when selecting settings or designs.

Cloth Guide
Learn More
Cloth Guide
- Use the Elna cloth guide as a seam guide.
- Snap it onto the sewing bed and slide it to the desired position. Place the fabric against the cloth guide and sew.

Extra Large Foot Controller
Learn More
Extra Large Foot Controller
- The extra large foot controller is bigger and easier to use.
- The larger top surface enables a greater level of control.
- Rubber covers the back surface so it won’t slip and is simple to operate.

Foot Control Base
Learn More
Foot Control Base
- This is the base plate that attaches the large white foot petal and the smaller cutter switch on the same platform.

Remote Thread Cutter Switch
Learn More
Remote Thread Cutter Switch
- Save time and cut thread with your foot! Keep your hands on your quilt and snip the threads by pressing the pedal on the remote thread cutter switch.
- The remote thread cutter switch can be used alongside the extra large foot controller.

Knee Lifter
Learn More
Knee Lifter
- With a full range of adjustment from left to right, you can find the position that fits you best — whatever your size or height.
- You can now sit directly in front of the needle with the knee lift perfectly positioned for free-motion quilting or general sewing.

Accessory Box
Learn More
Accessory Box
- Store your extra presser feet, bobbins, marking tools, and more!
- The top storage tray includes 12 presser foot storage areas and two sections for small items such as packs of needles.
- Below the tray is a compartment with a bobbin area that will store your bobbins snugly so that they won’t unravel, one large compartment for tools such as markers or awls, and two small compartments for other small notions.

Power Supply Cable
Learn More
Power Supply Cable
- This power cord is for 120V compatible in both the United States and Canada.

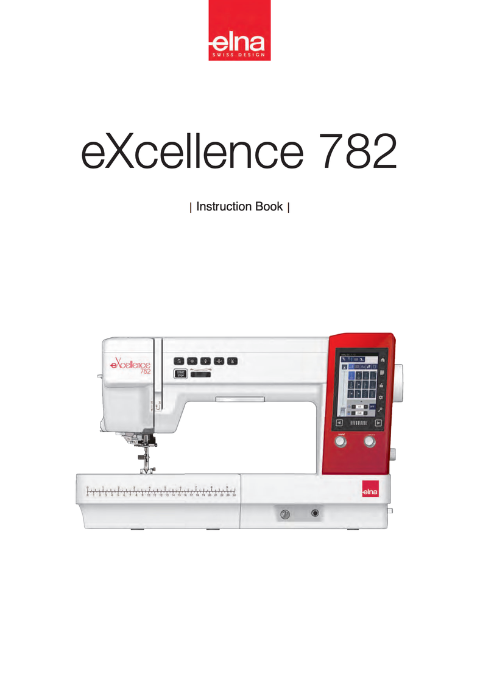

User Manual
Learn More
User Manual
- A paper copy of the user manual is provided and includes several language options.
- We encourage you to take the time to read your manual thoroughly, as every machine has a learning curve — regardless of your sewing experience. After all, technology is always evolving!

Stitch Composer Software
Learn More
Stitch Composer Software
- Stitch Composer gives you the opportunity to create your own regular sewing stitch files.
- Windows PC download only.

Semi Hard Fabric Cover
Learn More
Semi Hard Fabric Cover
- Rigid and durable, this cover keeps dust off your machine and protects it from scratches.

Extra Wide Table (Clear)
Learn More
Extra Wide Table (Clear)
- This Extra Wide Table comes standard with the Elna eXcellence 782.
- The 24″ x 16″ table is perfect for those extra large projects.
- Twist off removable legs.
- Note: Machine pictured is the Janome MC9480QCP

Set Screw A
Learn More
Set Screw A
- Comes with 4 screws.

Set Screw B
Learn More
Set Screw B
- Comes with 2 screws.

Washer
Learn More
Washer
- Comes with 2 washers.
Glide 40wt. Threads
Glide 40wt thread offers a silky sheen without the lint. Made in the USA from 100% polyester, it’s strong, smooth, and ideal for quilts, bags, and more — available in 300+ vibrant colors.
Shop All
Sewing Machine Needles
Needle & thread are the most important step to successful sewing. There is more than just one needle style and size. Discover the different style needle tips that can truly elevate your stitches.
Shop All
Accessories
With the right sewing machine, you can start a project with confidence; but with the right feet to assist you, you can zoom through it with precision and ease. Explore the dozens of accessories Janome has to offer to elevate your sewing.
Shop All
